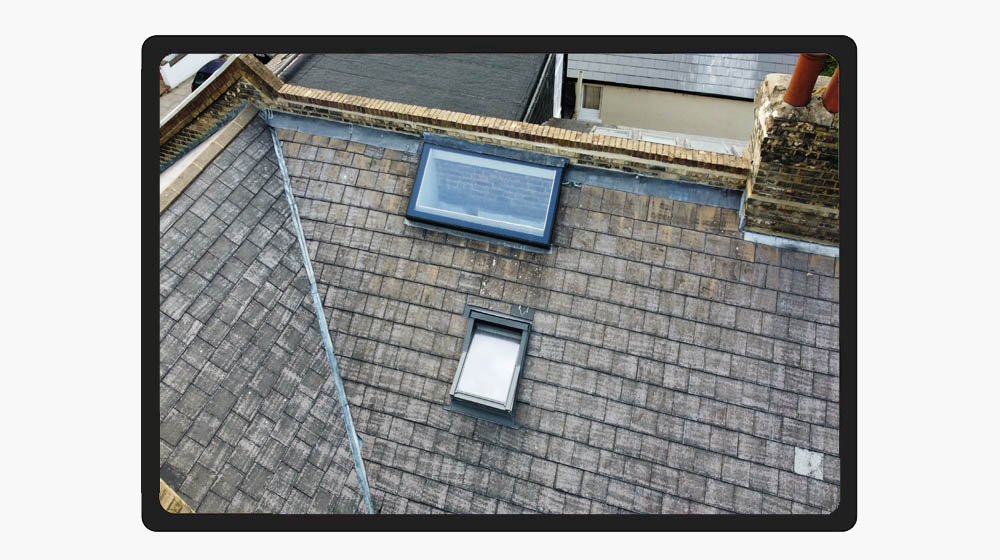

Bespoke wall-abutted rooflight installed beside an existing house wall
Wall-Abutted Rooflights · Overhead Glazing
Home/Rooflight types/Wall-Abutted Rooflights

ROOFLIGHTS FOR WALL JUNCTIONS

Wall Abutted
Rooflights

Our bespoke fixed wall abutted rooflights fit against walls on up to three sides, bringing daylight deeper into your extension.

Rear & side extensions
Thermally broken frame
UK manufacture
10-year IGU seal warranty
Technical support
Installed by Overhead Glazing

A clean answer where roof meets wall.

AT A GLANCE

Key features.

Frame

Thermally broken aluminium

Application

One-side wall abutment

Glazing

Double or triple glazed options

Inner pane

Heat-treated laminated safety glass

Wall detail

Abutment without external pressure plate

Water control

Project-specific cill / pressing

CLEAR DETAILS. EASY CHOICES.

Find what you need.

Product information, installation
and documents in one place.

WALL-ABUTTED ROOFLIGHTS

Designed for your project.

Wall-abutted rooflights are ideal where an extension roof meets the rear or side wall of an existing building. The wall interface is designed differently from a standard four-sided rooflight so water can be managed without a bulky external pressure plate.

We coordinate the rooflight frame, upstand, wall abutment and surrounding flashings before manufacture, helping the builder create a clear and buildable junction.

APPLICATIONRear & side extensions
SYSTEMThermally broken frame
SERVICELondon & UK-wide
THE COMPLETE SYSTEM

Specification at a glance.

Frame
Thermally broken aluminium
Application
One-side wall abutment
Glazing
Double or triple glazed options
Inner pane
Heat-treated laminated safety glass
Wall detail
Abutment without external pressure plate
Water control
Project-specific cill / pressing
Finish
Standard or custom RAL colour

The wall junction, roof fall and flashings must be coordinated with the builder’s waterproofing system before manufacture and installation.

YOUR PROJECT. YOUR OPTIONS.

Choose the right glass and finish.

01

Single wall abutment

A fixed rooflight can be adapted where one long or short side meets the building wall.

02

Modular arrangement

Larger wall-abutted openings can use multiple panes with structural silicone joints between glass units.

03

Aluminium pressing

A project-specific cill or wall pressing can help throw water clear and complete the external junction.

04

Solar-control glass

Glass coatings can be selected for exposed extensions, kitchens and large open-plan living spaces.

FROM ENQUIRY TO INSTALLATION

Installed exclusively by Overhead Glazing.

This specialist system is supplied with installation by Overhead Glazing. We coordinate the approved detail, delivery, lifting and fitting; the quotation states the included work.

01

Detail review

We review the plan, section, roof fall, wall construction and the proposed waterproofing approach.

02

Builder coordination

Kerb sizes, wall chase, cill and flashing zones are agreed before the opening is completed.

03

Drawings and manufacture

The wall-abutted frame and glass are produced only after the project detail is approved.

04

Installation and sealing

The unit is fixed to the prepared upstand and the wall interface is completed with the agreed weathering detail.

The roof structure, prepared upstand, waterproofing, lifting and access responsibilities are agreed with your project team before work begins.

YOUR PROJECT PRICE

Quoted to your specification.

Based on the glass, dimensions and agreed service.

LEAD TIME

Agreed for your project.

Programme confirmed after specification and drawing review.

OUR SPECIALIST TEAM

Installation

Fitting, access and lifting requirements agreed with your project team.

Final cost and programme are confirmed for your specification and agreed scope.

OVERHEAD GLAZING IN MOTION

See our rooflight work.

Our bespoke rooflight film · loads on play
Installed flat rooflight on a completed home
Play film

THE DETAIL MAKES THE DIFFERENCE

Less visible metal. Better coordination.

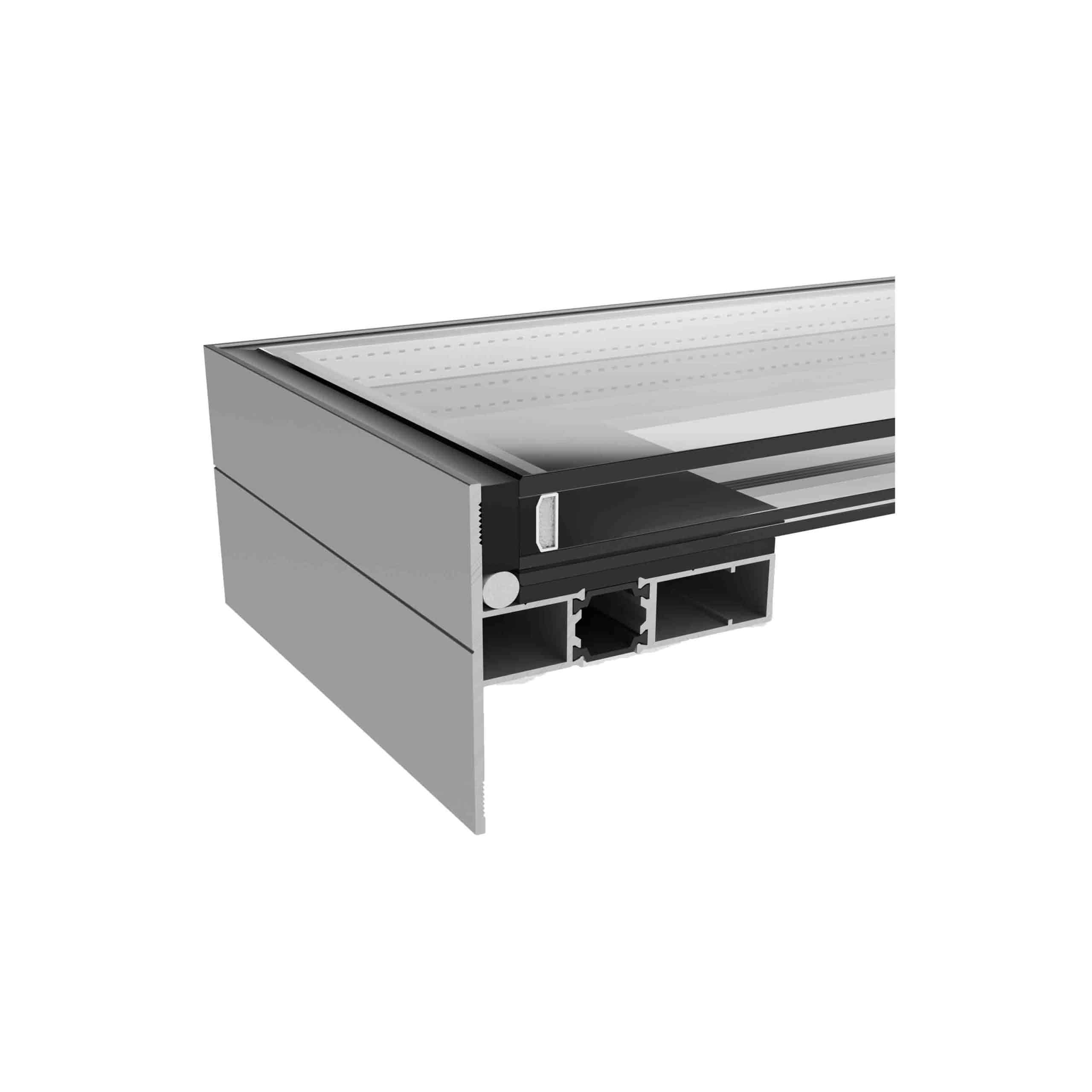

The wall side can be detailed without an external pressure plate, keeping the glazing line visually simple. Thermal bridging is assessed through the complete frame and wall junction.

Wall-side junction and perimeter of a wall-abutted rooflight

PERFORMANCE WITH CONTEXT

Performance for your project.

Glass, frame, support and intended use are considered together.

Designed around water movement

The roof fall, upstand, wall chase and aluminium cill or pressing are coordinated to direct water away from the junction.

The same proven framed system

The rooflight uses the same thermally broken aluminium approach as our standard fixed rooflights, adapted for the wall abutment.

Confirmed for your project

The wall junction, roof fall and flashings must be coordinated with the builder’s waterproofing system before manufacture and installation.

BEFORE YOU CHOOSE

Useful answers.

What is a wall-abutted rooflight?+

It is a rooflight designed so one side meets an adjacent building wall rather than sitting on a freestanding four-sided upstand.

Is a pressure plate required against the wall?+

Our wall-abutment approach can avoid a conventional external pressure plate at the wall, reducing visible metal. Thermal performance still depends on the frame, edge and surrounding construction.

Who completes the wall flashing?+

This is agreed project by project. The builder or roofer normally coordinates the primary waterproofing, while we provide the required rooflight interface information.

Can the rooflight be modular?+

Yes. Larger openings can use several panes with weather-sealed structural silicone joints.

What roof fall is needed?+

A positive fall should be formed to shed water. The exact pitch and drainage direction are confirmed with the roof and abutment details.

Can it be triple glazed?+

Double and triple-glazed options can be considered depending on size, weight, thermal targets and the supporting construction.

Can I order this rooflight supply-only?+

This specialist product is supplied with installation by Overhead Glazing only. Supply-only is available for suitable fixed flat rooflights.

What warranty applies to this product?+

Qualifying insulating glass units carry a 10-year seal warranty, subject to the written terms supplied with the order. This is not a blanket guarantee against breakage or a 10-year frame or installation warranty. Installation labour carried out by us is covered for five years, subject to the written terms.

CUSTOMER FEEDBACK

Hear from our customers.

Read feedback about Overhead Glazing on Google.

LET’S TALK ABOUT YOUR PROJECT

Is your rooflight meeting a wall?

Share your postcode, drawings and project details. We’ll help confirm a suitable specification.

Installed exclusively by Overhead Glazing.
Optional. Up to 6 MB per file.

We’ll use these details to respond to your enquiry. Privacy policy

Your enquiry goes straight to our team.

PROJECTS & PRACTICAL ADVICE

From the drawing to the roof.

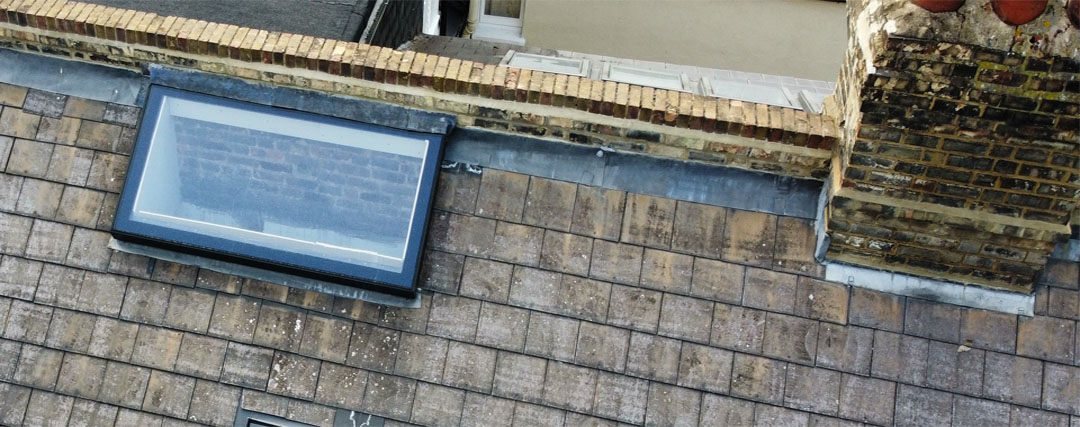

A wall-abutted rooflight designed around the existing building.
PRODUCT IN CONTEXT

A wall-abutted rooflight designed around the existing building.

The rooflight meets the wall cleanly while the perimeter frame, falls and waterproofing interfaces remain coordinated.
