Circular glass rooflight with a dark perimeter band and curved aluminium frame
Circular rooflight · Overhead Glazing
Home/Rooflight types/Circular rooflights

BESPOKE ROUND ROOF GLAZING

Circular rooflights.
A different view.

Our bespoke circular rooflights use a rolled and welded aluminium frame to bring daylight into stairwells, hallways and extensions.

Rolled & welded frame
Heat-treated laminated inner
UK manufacture
10-year IGU seal warranty
Made to your diameter
Installed by Overhead Glazing

Circular rooflights, made to measure.

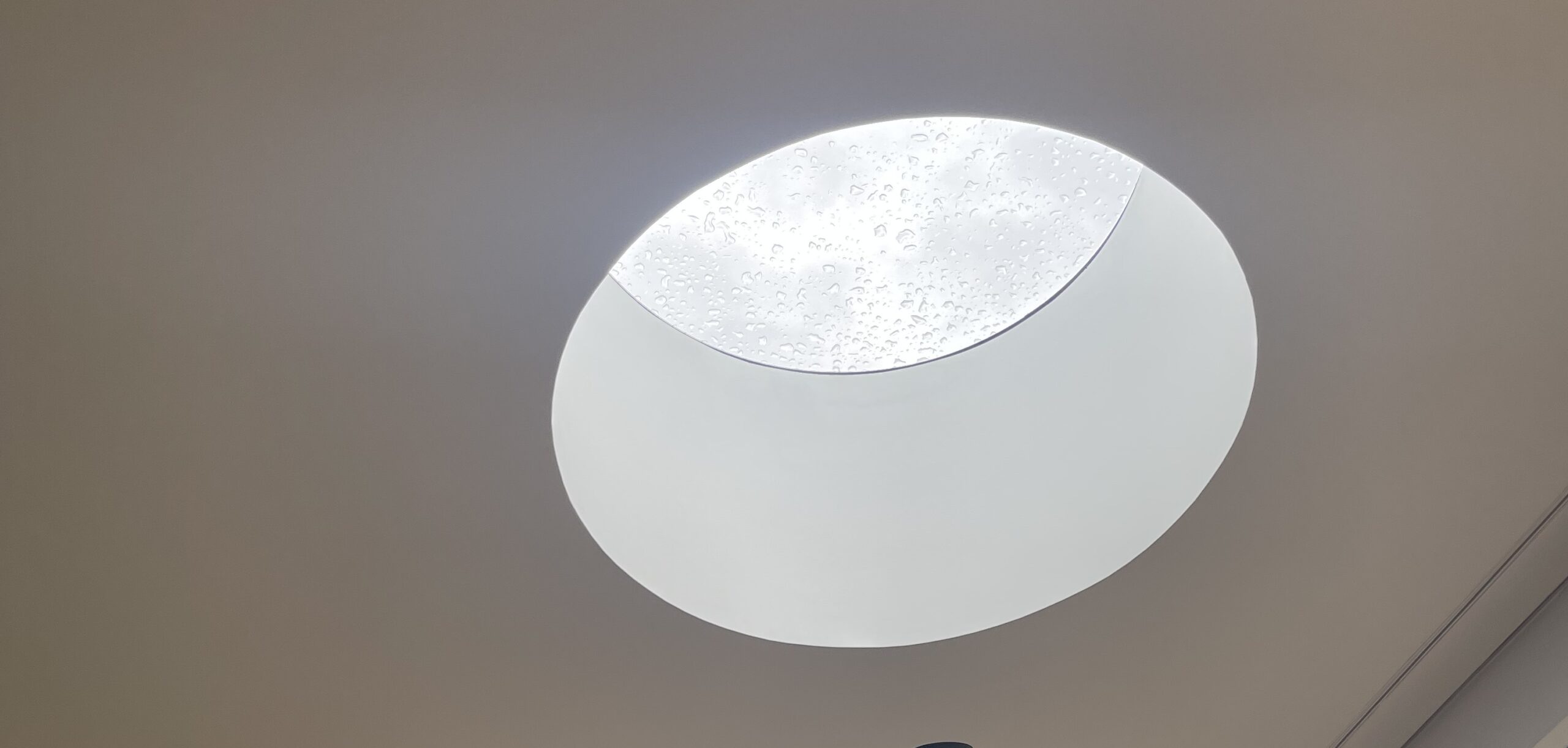

Completed circular rooflight and curved ceiling reveal viewed from the room below
The view from inside

AT A GLANCE

Key features.

Rolled & welded frame

A continuous curve, formed around your opening.

Bespoke diameter

Dimensions agreed for the roof and glass.

Laminated inner glass

Heat-treated glass specified for overhead use.

Double or triple glazing

Insulation and glass weight considered together.

Solar control options

Coatings selected for incoming solar heat.

Powder-coated finish

Anthracite, black or a project-specific RAL colour.

CLEAR DETAILS. EASY CHOICES.

Find what you need.

Your product information, installation
and documents in one place.

BESPOKE CIRCULAR ROOFLIGHTS

A curve made for your opening.

A circular rooflight creates a softer focal point than a rectangular opening. The welded aluminium frame follows the curve, with the glass build-up selected for the diameter and room below.

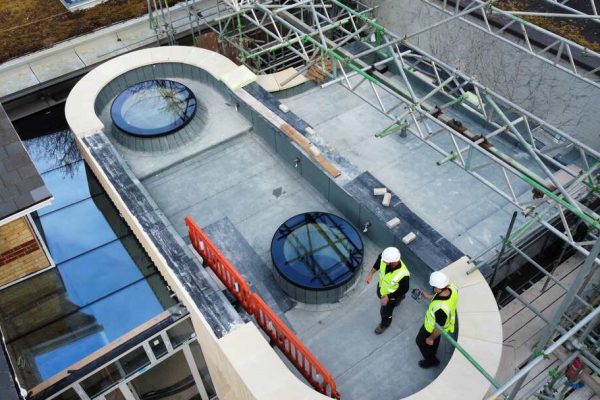

Circular rooflights suit kitchens, stairwells, entrance halls, feature ceilings, nurseries and healthcare spaces. Our completed projects include Maggie’s Centre and Fennies Nursery installations.

ShapeCircular, made to agreed dimensions
FrameRolled, welded and powder coated
ServiceDesign, supply & installation

A standard circular rooflight is non-walk-on. A terrace, floor or maintenance-access application needs a separately agreed system.

THE COMPLETE ASSEMBLY

Specification at a glance.

Frame
Rolled and welded aluminium
Diameter
Bespoke; subject to glass and design limits
Glazing
Double or triple options
Inner pane
Heat-treated laminated safety glass
Cavity
Warm-edge spacer and argon
Coatings
Low-E and solar-control options
Finish
RAL 7016, RAL 9005 or custom colour
Installation
Prepared and weathered upstand

Final glass thickness, thermal strategy and performance depend on diameter, loads, roof construction and access. Request the confirmed project specification and CAD or PDF details.

GLAZING & PERSONALISATION

Choose for the room below.

01

Double glazing

A practical balance of insulation and weight, with laminated inner safety glass selected for the opening.

02

Triple glazing

An extra pane and cavity can be considered where the thermal target, diameter and lifting strategy allow.

03

Solar control

A selective coating can reduce unwanted solar heat while retaining useful daylight.

04

Frame colour & finish

Standard anthracite and black finishes or a bespoke RAL colour can coordinate with the roof and windows.

Illustrative half-round rooflight concept, shown as a shape reference
A different curve in mind?

Send a drawing for a half-round or custom-shaped opening. Feasibility and the frame detail need a separate review.

Shape illustration · not a construction detail
ONE SPECIALIST TEAM

Installed exclusively by Overhead Glazing.

This specialist system is supplied with installation by Overhead Glazing. We coordinate the approved detail, delivery, lifting and fitting; the quotation states the included work.

01

Review the opening

Send the diameter, postcode, roof build-up and available drawings.

02

Approve the detail

Confirm kerb dimensions, glass build-up, frame and finish before manufacture.

03

Form and finish the frame

The circular frame is rolled, welded and powder coated.

04

Coordinate the installation

Plan delivery, lifting, fixing and weather sealing around the prepared upstand.

The roof structure, prepared upstand, waterproofing, lifting and access responsibilities are agreed with your project team before work begins.

YOUR PROJECT PRICE

Quoted to your specification.

Based on the glass, dimensions and agreed service.

LEAD TIME

Typically 5–6 weeks

Subject to specification and availability.

OUR SPECIALIST TEAM

Installation

Fitting, access and lifting requirements agreed with your project team.

Final cost and programme are confirmed for your specification and agreed scope.

OVERHEAD GLAZING IN MOTION

See our rooflight work.

Our bespoke rooflight film · loads on play
An installed bespoke flat rooflight on a completed home
Play film

THE FRAME MAKES THE DIFFERENCE

Rolled. Welded.
Made to the curve.

The aluminium frame is rolled and welded before powder coating, creating a continuous round edge. The curve is formed around your opening rather than assembled from straight frame segments.

One circular frame.
No segmented corners.
Diameter, support and access are reviewed before manufacture.

Circular aluminium frame positioned on the prepared timber upstand before the glass is fitted
Frame installation stage · glass not yet fitted

PERFORMANCE WITH THE CONTEXT INCLUDED

The right glass.
For your diameter.

Compare the complete rooflight, the glass build-up and the intended roof angle together.

Thermal insulation

Double or triple glazing is selected around the thermal target, diameter, glass weight and supporting detail.

Solar heat control

Coatings can reduce incoming solar heat. Solar factor and light transmission are different measures and need to be considered together.

Overhead safety

Heat treatment, laminated inner glass, pane thickness and support are specified for the opening. Final performance is confirmed for your project.

BEFORE YOU CHOOSE

Useful answers.

What is the maximum size of a circular rooflight?+

A circular rooflight can be manufactured as a single glazed unit up to approximately 2.4 metres in diameter, subject to glass specification, access, lifting and project-specific design checks.

Can a circular rooflight be triple glazed?+

Yes. Double- and triple-glazed options can be considered depending on the diameter, thermal target, weight and supporting upstand. We will recommend the most suitable build-up for the project.

Is the inside pane laminated?+

We specify a heat-strengthened laminated or heat-soak-tested toughened laminated inner pane for overhead safety. Toughened panes are heat-soak tested as standard to reduce the risk associated with nickel-sulphide inclusions; this does not eliminate every cause of breakage.

What upstand is required?+

The rooflight sits on a prepared and weathered upstand. As general UK guidance, the upstand should normally finish at least 150mm above the finished roof level, with project-specific falls and waterproofing details agreed before manufacture.

Can I choose the frame colour?+

Standard finishes include RAL 7016 Anthracite Grey and RAL 9005 Jet Black. Other powder-coated RAL colours are available on request.

Can I order this rooflight supply-only?+

This specialist product is supplied with installation by Overhead Glazing only. Supply-only is available for suitable fixed flat rooflights.

What warranty applies to this product?+

Qualifying insulating glass units carry a 10-year seal warranty, subject to the written terms supplied with the order. This is not a blanket guarantee against breakage or a 10-year frame or installation warranty. Installation labour carried out by us is covered for five years, subject to the written terms.

CUSTOMER FEEDBACK

Hear from our customers.

Read feedback about Overhead Glazing on Google.

LET’S MAKE IT CIRCULAR

Have a round
opening in mind?

Share your postcode, drawings and project details. We’ll help confirm a suitable circular rooflight specification.

Design, supply and installation for suitable projects across London and the UK.
Optional. Up to 6 MB per file.

We use these details to respond to your enquiry. Privacy policy.

Your enquiry goes straight to our team. No order is placed here.
